The 3-in-1 allrounder
Portable network analyzer, optional spectrum analyzer (with independent CW source) and power sensor support

Wide frequency range from 5 kHz up to 20 GHz
Optional spectrum analysis and power sensor support up to 26.5 GHz
CW signal generator spectrum analysis option
Cost-efficient, portable (battery-powered option), precise, versatile

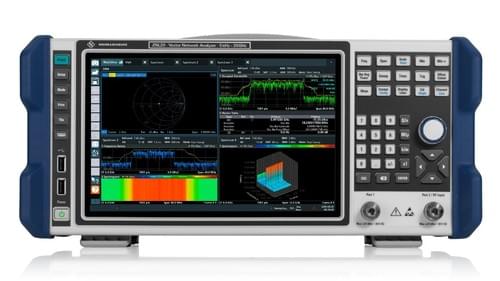

The R&S®ZNL helps reduce investment costs with a unique option concept. The base models support frequencies from 5 kHz to 20 GHz and they can be expanded to include a fully integrated spectrum analyzer and support RF power meters. Furthermore, spectrum analysis supports a CW signal generator option.

4-port, 9 kHz to 20 GHz

Balance performance and cost

Improve throughput with fast Thunderbolt 3 interfaces

Share the portable VNA with other teams and locations

Extend the number of test ports by cascading two VNAs

Measure with the same GUI, SCPI commands, and measurement science as Keysight’s trusted high-performance VNAs

Calibrate quickly with Keysight Electronic Calibration (ECal) modules

The ShockLine™ MS46122B series consists of three PC-controlled, compact vector network analyzers (VNAs) with frequency ranges from 1 MHz to 8/20/43.5 GHz.

The ShockLine™ MS46522B series are 2-port performance vector network analyzers. Delivering an unprecedented level of value and performance, this series lowers the cost-of-test and speeds time-to-market in numerous testing applications up to 92 GHz

he VectorStar ME7838 broadband series system provides high performance in a compact mmWave module utilizing the Anritsu Nonlinear Transmission Line (NLTL) technology, with system coverage from 70 kHz to 110, 125, 145, and 220 GHz. The ME7838 series is the only broadband system with positive raw directivity in multiple bands.

2-port USB VNA systems deliver phase synchronized measurements over 100 meters, improves dynamic range and measurement stability of s-parameter measurements, available in 8/20/43.5 GHz models

VDI's VNA Extenders deliver high performance network analyzer frequency extension into the THz range.
