- 70 MHz bandwidth, ±7,000 V differential (DC + AC peak)
- attenuation ratios: 2,500 / 250:1, auto-switchable
- differential input impedance: 50 MΩ || 2pF
- DC common mode rejection >80 dB
- UL safety-certified
- AutoProbe interface, 1 MΩ input
- 600 Vrms CAT III ratings

- 200 MHz bandwidth, ±3,000 V differential (DC + AC peak)
- attenuation ratios: 1,000 / 100:1, auto-switchable
- differential input impedance: 20 MΩ || 2pF
- DC common mode rejection >80 dB
- UL safety-certified
- AutoProbe interface, 1 MΩ input
- 600 Vrms CAT III ratings

- 200 MHz bandwidth, ±1,500 V differential (DC + AC peak)
- attenuation ratios: 500 / 50:1, auto-switchable
- differential input impedance: 10 MΩ || 2pF
- DC common mode rejection >80 dB
- UL safety-certified
- AutoProbe interface, 1 MΩ input
- 600 Vrms CAT III ratings

- 200 MHz bandwidth, ±750 V differential (DC + AC peak)
- attenuation ratios: 250 / 25:1, auto-switchable
- differential input impedance: 5 MΩ || 2pF
- DC common mode rejection >80 dB
- UL safety-certified
- AutoProbe interface, 1 MΩ input
- 300 Vrms CAT III / 600 Vrms CAT II ratings

- 100 MHz bandwidth, ±750 V differential (DC + AC peak)
- attenuation ratios: 250 / 25:1
- differential input impedance: 5 MΩ || 2pF
- DC common mode rejection >80 dB
- UL safety-certified
- universal BNC + USB interface
- 300 Vrms CAT III / 600 Vrms CAT II ratings

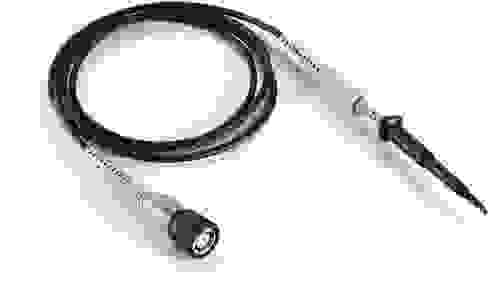

1 GHz of analog bandwidth (<4 pF input capacitance)

300 Vrms CAT II input voltage, and up to 1.5 kV peak transient overvoltage

10 MΩ input impedance at low frequencies

AutoProbe I compatibility

1.3 meter cable length for ease of use

Small 5mm tip and compact probe design for easy probing on smaller targets

Variable attenuation, automatically configured by the oscilloscope

Rigid tip for secure device-under-test connectivity

Replaceable probe tip cartridges

Large accessory set for versatile connectivity

Low noise: 1:1 attenuation ratio probe adds only 10% to the baseline noise of the oscilloscope it is attached to

Large offset range: Has a large +/-24 V offset range, enabling users to set their oscilloscope at maximum sensitivity and have the signal centered on the screen

Low DC loading: 50 kΩ DC input impedance will not significantly load DC power rails

Large active signal range: Has a +/-850 mV active signal range in addition to its large offset range so users can measure large transitions of their power rails

High bandwidth: 2-GHz bandwidth makes it very useful for finding high-speed transients that can have detrimental effects on clocks and digital data

Test and validate high-speed technologies such as DDR5 / MIPI with the 25 GHz probe amplifier (AP2).

Experience the highest input impedance in midband frequencies for low-energy probing.

Boost test margins with the lowest signal degradation.

Probe small devices with the super-flexible micro probe head or choose from the widest variety of compatible probe heads for your unique application.

Measure differential, single-ended, and common mode signals with a single probe tip.

Use with Infiniium UXR-, 90000 X-, Q-, V-, and Z-Series oscilloscopes.

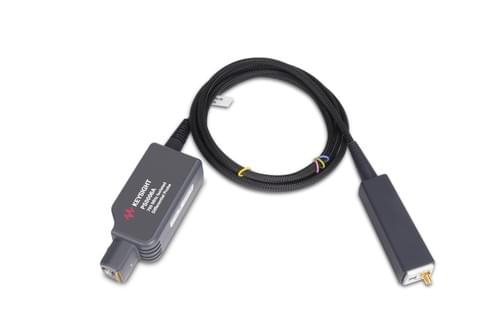

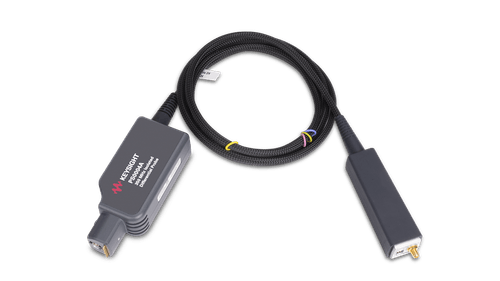

bandwidth at 1.7 GHz

maximum differential measurement range (DC and AC peak): ±42 V

±4.2 V on 17:1 auto attenuation ranges

±42 V on 85:1 auto attenuation ranges

input impedance: 1.7 MΩ / 1.5 pF

cable length: 1.3 meters

compatible oscilloscopes
Keysight InfiniiVision 3000T X-, 4000 X-, and 6000 X-Series
Keysight Infiniium EXR-, MXR-, and S-Series
Keysight Infiniium UXR-, V-, Z-, Q-, and 90000 X-Series with the use of the Keysight N5442A adapter

AC/DC high sensitivity current probe, 150MHz

Probe Amplifier - InfiniiMax, 7 GHz
