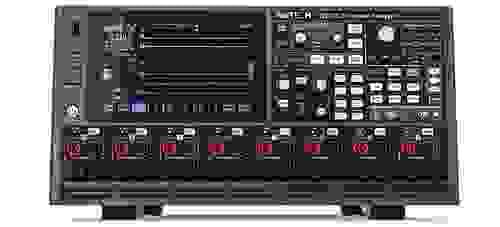

- Supports more than 30+ modules (including DC sources, electronic loads, bidirectional power supply, SMU).
- Up to 8 modules can be installed (depends on power), separate control and solation between channels
- Supports master-slave parallel connection between 2 modules to extend power*1
- Graphical operation interface with guided menus, significantly enhancing ease of use
- Supports LIST programming, sequence editing, battery testing/emulating, user-defined waveform and correction scanning, etc
- Built-in EIS (Electrochemical Impedance Spectroscopy) capability (IT2705 with IT27814 SMU module)
- Integrated Ah/Wh statistics, automatically recording regenerative energy
- Flexible display modes: Meter / Scope / Data Logger
- Minimum data logging interval of 20 μs
- Web control supported, allowing full functionality through a standard browser
- Standard interfaces: USB / LAN / CAN / Digital I/O, with free control software PV2700 included

*1 IT27814/IT27814E can be parallel connection only under CC mode.

AC Output Ratings:

• Output frequency: 45 Hz to 500 Hz
• Maximum Output voltage: 300 Vrms
• Resolution 0.1 V
• RMS Current: 1.5 A at 300 V, 6 A at 150 V
• Peak Current: 6 A at 300 V, 12 A at 150 V
Feature set:

• Built in Power Analyzer

• Vrms / Irms / Iavg / Ipk / Frequency
• PF / Active Power/ Reactive Power
• Harmonic analysis function

• Dimmer function
• Power line disturbance simulation
• Over-voltage,over-power,over-current,over-temperature protection features
• EN 61000-4-11 test
• Free PC software
Connectivity:

• Standard on all units
• USB / RS-232 / LAN

IT7800 High Power Programmable AC/DC Power Supply

IT7900P High Performance Regenerative Grid Simulator

IT8000 Regenerative DC Electronic Load

DC Output Ratings: • Maximum 800 W • Maximum Output voltage: 0-80 V • Resolution: 1 mV • Current: 0-60 A • Resolution: 0.1 mA • Ripple: <30 mVpp Setup Accuracy: • Voltage: <0.02% + 30 mV • Current: <0.1% + 0.1% of full scale Feature set: • Intilligent fan control. Low acoustic noise • Accurate readback of current and voltage • Slew rate setting • CV/CC/CP mode • Remote sense • Master/Slave mode for more units in parallel • SCPI programming • Extensive protection • High accuracy and resolution Connectivity: • LAN, RS-232, RS-484, USB and GPIB

AC Output Ratings:

• Output power: 750 VA
• Output frequency: 45 Hz to 500 Hz
• Maximum Output voltage: 300 Vrms
• Resolution 0.1 V
• RMS Current: 3 A at 300 V, 6 A at 150 V
• Peak Current: 12 A at 300 V, 24 A at 150 V
Feature set:

• Built in Power Analyzer

• Vrms / Irms / Iavg / Ipk / Frequency
• PF / Active Power/ Reactive Power
• Harmonic analysis function

• Dimmer function
• Power line disturbance simulation
• Over-voltage,over-power,over-current,over-temperature protection features
• EN 61000-4-11 test
• Free PC software
Connectivity:

• Standard on all units
• USB / RS-232 / LAN

Compact half-rack unit DC power supply, supporting master-slave mode. 400W or 850W power supplies can be combined to a 16-channel power supply with only 8RU of space

Compact half-rack unit DC power supply, supporting master-slave mode. Build a system with 4 channels in a 1U rack space, cost effectively. Multichannel configuration can produce 16 channels in a 4U high setup

IT-M3200 high precision programmable DC power supply adopts a mixed modes design, which not only takes into account high power and low ripple output, but also has dynamic load response, switching between multiple current measurement ranges. Multichannel setup can produce 16 accurate channels in 8U high setup
