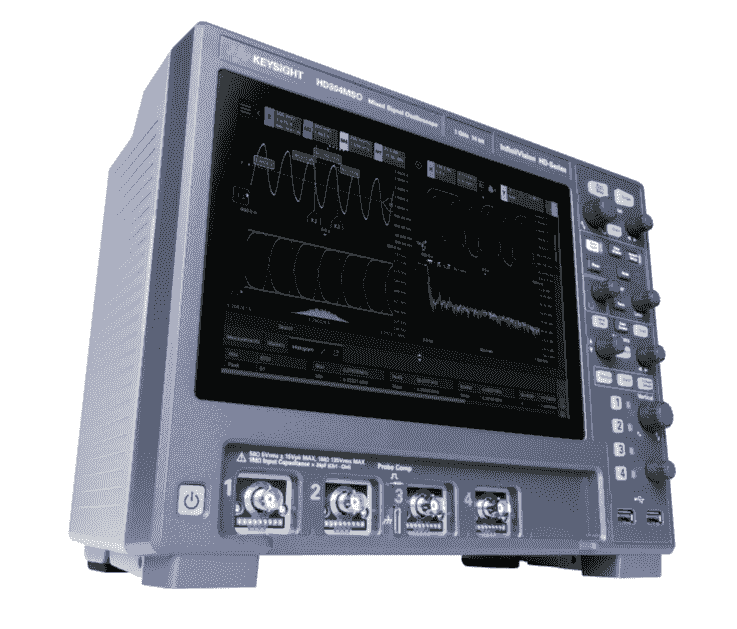

    Keysight InfiniiVision HD3 Series Oscilloscopes

    4x the resolution, ½ the noise floor in a portable oscilloscope

  • Sign Up for Oscilloscopes Seminars in Finland

    Join Keysight and their partner Testhouse Nordic in Helsinki, Tampere, or Oulu for a half-day, complimentary deep-dive into Oscilloscopes including technical lectures, hands-on demos, and networking.

  • Highlights

    Separate Signal from Noise



    Perform digital debugging using a portable oscilloscope with a custom application-specific integrated circuit (ASIC) that delivers four times more vertical resolution and half the injected noise of other general-purpose oscilloscopes. Troubleshoot your design and ensure product quality by debugging with an oscilloscope that can see the small signals beyond the noise to catch the slightest and most infrequent signal glitches.

    • Increase vertical resolution by four times with a 14-bit analog-to-digital converter (ADC).
    • See smaller signals with a 50 µVRMS noise floor.
    • Identify infrequent signal glitches with an uncompromised 1.3M waveform / second update rate enabled by a custom ASIC.
    • Capture and analyze more signals at once with 100 Mpts of deep memory.
    • Display up to four independent signals and control the scaling individually.
    • Isolate signals in seconds with zone triggering — simply draw a box with your finger on the screen.
    • Characterize signals, hunt for errors, and save automatically with Keysight Fault Hunter.
    • Perform advanced analysis with fast Fourier transforms (FFTs), mask testing, histograms, and Bode plots.

  • Debug with 4x the resolution, ½ the noise floor panel

    Ensure product quality by debugging with an oscilloscope that can seethe small signals beyond the noise.

    • 14-bit ADC delivering four times the resolution
    • Capture smaller signals with a 50 µVRMS noisefloor

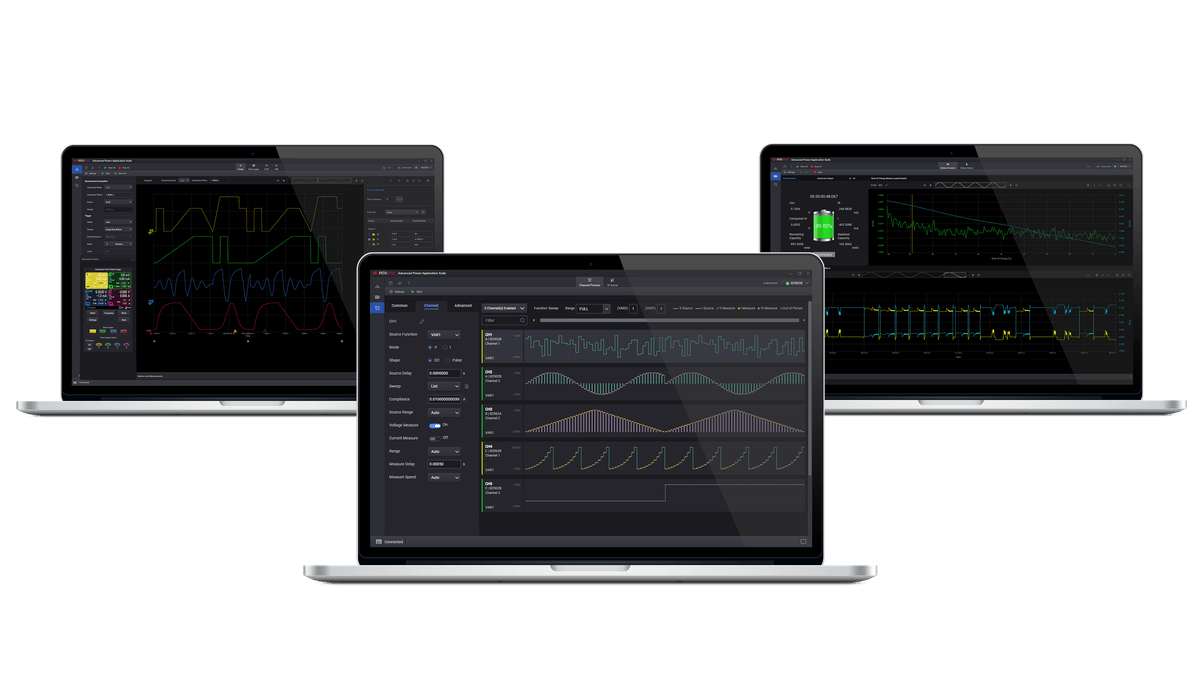

    • Turn complex measurements into automated analysis with advanced software capabilities
    • Save valuable bench space, providing more capabilities
      in the same footprint by enabling additional instrument integration

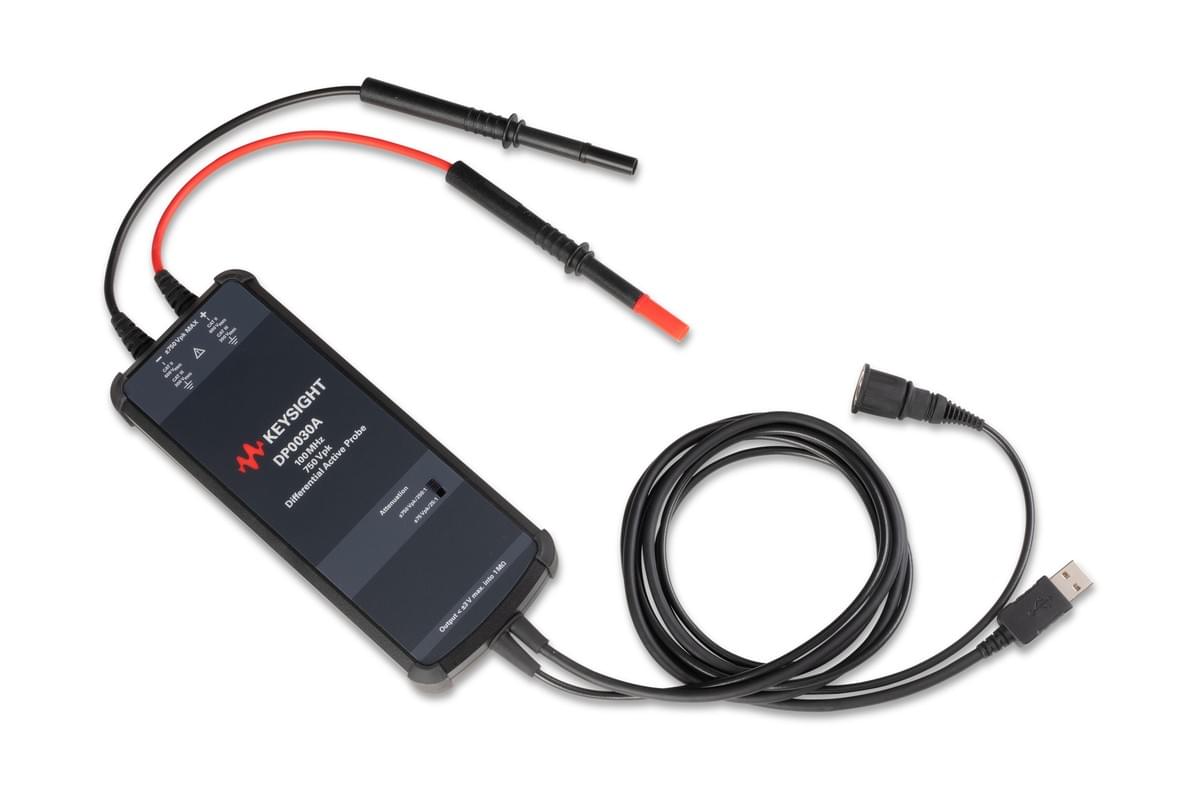

    • Start today with the probes that come standard with the HD3 oscilloscope

  • Key Specifications

    Bandwidth



    200 MHz to 1 GHz

    ADC



    14 bits

    Noise Floor



    50 µVRMS

    Waveform Rate



    1,300,000 wfms/s

    Max Memory Depth



    100M points
